IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Brand Name : CODT

Model Number : EX-HC

Certification : ATEX, IECEx,ETL,API,ABS

Place of Origin : CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pcs per day

Delivery Time : 5-20days

Packaging Details : carton box standard, check the specification

Item type : Explosion- proof lights

Ip rating : 66/67

Working temperature(℃) : -60-100

Color : Gray

Type : Junction Box

Material : Stainless Steel

Contact Now

Factory Price Atex/IECEX Alloy Explosion Proof enclosures Explosion Bushings-HC Series-35

  • Features:

Copper free aluminum, plastic-sprayed surface.

Ex e type enclosure.

Valid over the entire temperature range from -60°C to 100°C (-76 ºF to 212ºF).

Degree of protection: IP66-IP67.

Widely used for connection in steel pipe wiring system

  • Application:

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

  1. Ordering Guide:

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

  • Technical Data:

Marking ATEX:

Ⅱ 2 G Ex eb ⅡC Gb Ⅱ 2 D Ex tb ⅢC Db IP66

Marking IECEx:Ex eb ⅡC Gb Ex tb ⅢC Db IP66

Marking UL1203: Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standard: EN 60079-0,EN 60079-7,EN 60079-31 IEC 60079-0,IEC 60079-7,IEC 60079-31

Ambient Temperature: -60℃ ~ +100℃

Structure Type: A, B, C, D, E, F, G, H

Connection Thread: Metric thread is standard type. NPT or other threads are optional, and please specify when ordering. The standard thread pitch of metric thread is 1.5mm. Other pitches can be customized, and please specify when ordering.

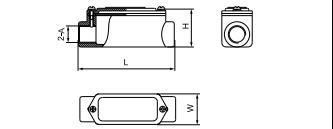

  • Selection Table

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 36 52.5 120
M25*1.5 ¾ 42 58.5 135
M32*1.5 1 50 68 160
M40*1.5 1 1/4 61 78.5 185
M50*1.5 1 1/2 70 85.5 190
M63*1.5 2 84 99.5 210
M75*1.5 2 1/2 99 115 280
M90*1.5 3 118 134 290
M100*1.5 3 1/2 133 147 320
M115*1.5 4 145 159 320

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 54 52.5 120
M25*1.5 ¾ 60 58.5 135
M32*1.5 1 72 68 160
M40*1.5 1 1/4 83 78.5 185
M50*1.5 1 1/2 94 85.5 190
M63*1.5 2 108 99.5 210
M75*1.5 2 1/2 134 115 280
M90*1.5 3 156 134 290
M100*1.5 3 1/2 171 147 320
M115*1.5 4 186 159 320

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 72 52.5 120
M25*1.5 ¾ 78 58.5 135
M32*1.5 1 94 68 160
M40*1.5 1 1/4 105 78.5 185
M50*1.5 1 1/2 118 85.5 190
M63*1.5 2 132 99.5 210
M75*1.5 2 1/2 169 115 280
M90*1.5 3 194 134 290
M100*1.5 3 1/2 209 147 320
M115*1.5 4 277 159 320

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 54 52.5 111
M25*1.5 ¾ 60 58.5 126
M32*1.5 1 72 68 149.5
M40*1.5 1 1/4 83 78.5 174.5
M50*1.5 1 1/2 94 85.5 177.5
M63*1.5 2 108 99.5 197.5
M75*1.5 2 1/2 134 115 257.5
M90*1.5 3 156 134 264.5
M100*1.5 3 1/2 171 147 294.5
M115*1.5 4 186 159 291.5

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 54 52.5 111
M25*1.5 ¾ 60 58.5 126
M32*1.5 1 72 68 149.5
M40*1.5 1 1/4 83 78.5 174.5
M50*1.5 1 1/2 94 85.5 177.5
M63*1.5 2 108 99.5 197.5
M75*1.5 2 1/2 134 115 257.5
M90*1.5 3 156 134 264.5
M100*1.5 3 1/2 171 147 294.5
M115*1.5 4 186 159 291.5

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 36 52.5 111
M25*1.5 ¾ 42 58.5 126
M32*1.5 1 50 68 149.5
M40*1.5 1 1/4 61 78.5 174.5
M50*1.5 1 1/2 70 85.5 177.5
M63*1.5 2 84 99.5 197.5
M75*1.5 2 1/2 99 115 257.5
M90*1.5 3 118 134 264.5
M100*1.5 3 1/2 133 147 294.5
M115*1.5 4 145 159 291.5

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 36 52.5 120
M25*1.5 ¾ 42 58.5 135
M32*1.5 1 50 68 160
M40*1.5 1 1/4 61 78.5 185
M50*1.5 1 1/2 70 85.5 190
M63*1.5 2 84 99.5 210
M75*1.5 2 1/2 99 115 280
M90*1.5 3 118 134 290
M100*1.5 3 1/2 133 147 320
M115*1.5 4 145 159 320

IECEX ATEX Explosion Proof Junction Box Class 1 Division 2

Internal thread "A” Dimension(mm)
Metric NPT W H L
M20*1.5 ½ 30 51 84
M25*1.5 ¾ 35 53 89
M32*1.5 1 41 64 108
M40*1.5 1 1/4 51 69 116
M50*1.5 1 1/2 57 76 130
M63*1.5 2 70 95 168
  • QA:

Q1. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q2. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
